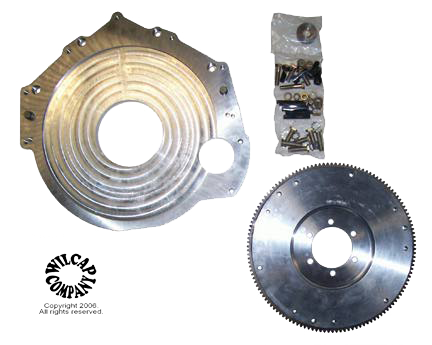

55-64 CAD TO CHEVY MANUAL TRANS.

*Notes; The CAD-350 comes drilled with the Chevrolet and can be supplied with the late Buick, Olds, Pontiac and Cadillac transmission. bellhousing bolt pattern ON REQUEST. Complete instructions are included for installing the adapter. We do not supply information regarding engine or transmission installation in to specific frames, bodies, etc. This is the responsibility of the customer and care should be taken to address the issues of motor and transmission mounts, driveline, body and frame clearance, gear ratios, etc. BEFORE the purchase of the engine to transmission adapter.

KNOWN ISSUES; SOME CRANKS (1956? DYNAFLOW) HAVE A DRIVE DOWEL AND SLIGHTLY DIFFERENT BOLT PATTERN ON CRANK. 1964 WITH FACTORY ADAPTER USED ½” DOWELS ON BLOCK. CHEVY PATTERN AND BOP PATTERN ARE DIFFERENT PROFILES AND THE SALES ORDER NEEDS TO BE ENTERED SPECIFICALLY CHEVY OR BOP.
