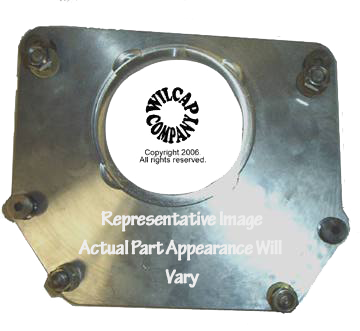

YBLOCK BH 1949-64 CAR TO CHEVY "MUNCIE" TRANSMISSION. PILOT BEARING INCLUDED.

The adapter is designed to use the stock flywheel, starter, pressure plate, and bellhousing from your engine. the clutch disk used is the corresponding disk matching the transmission input shaft and the pressure plate diameter. For example; if your stock pressure plate for your engine is 11”, you will need an 11” clutch disk with the transmissions input shaft spline (1 1/16 x 10). contact wilcap if you need a specific clutch disk.

YOUR throw out bearing WILL need to have the sleeve pressed into it when the original input shaft was 1 3/8”. When the original input shaft is a 1 1/16”, the ford throw out bearing must be sleeved. the bearing is available from wilcap with the sleeve installed and machined.
