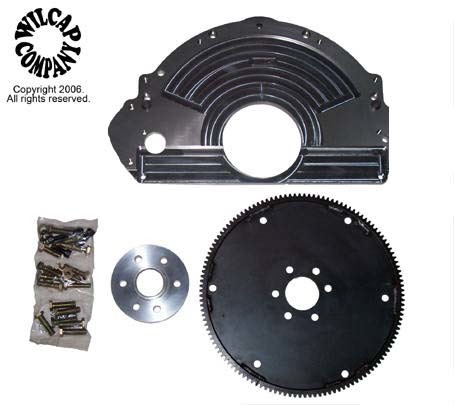

426-350 ADAPTER WITH FLEX PLATE AND HUB ADAPTER

ENGINE APPLICATION YEARS/Cm V8 CHRYSLER BIG BLOCK 361,383,400,413,426,440 6 OR 8 BOLT CRANKSHAFT

TRANS APPLICATION YEAR/MODEL CHEVY OR BOP AUTO; PG, TH350, 400, 700R4, 4L60. MANUAL TRANS WIBELLHOUSING

STARTER USED MODIFIED MOPAR2 BOLT STARTER, GEAR REDUCTION "MINI" STARTER

MATERIAL / MACHINING METHODS WILCAP CNC MACHINED CAST ALUMINUM ADAPTER PLATE, STEEL FLEXPLATE, ALUMINUM CRANKSHAFT SPACER, DOWEL PINS, GRADE 8 CRANKSHAFT ATTACHMENT BOLTS, ALLOY ENGINE TO ADAPTER FASTENERS.

NOTES; The 426-350 is available for either the 6 bolt or 8 bolt crankshaft. The adapter plate is available with ears that protrude from the sides for use in mounting the (additional cost). Modification ofthe bellhousing will be necessary. We can supply the needed modified starter. Complete instructions are included not only for installing the adapter but or modification of the starter. We do not supply information regarding engine or transmission installation in to specific frames, bodies, etc. This is the responsibility of the customer and care should be taken to address the issues of motor and transmission mounts, driveline, body and frame clearance, gear ratios, etc. BEFORE the purchase of the engine to transmission adapter.
