FE MOTOR TO CHEVY TRANS

ENGINE APPLICAnON YEARS/CID: FORD, MERCURY 332,352,360,361,390,406; 410,427,4281958-1976

TRANS APPLICATION YEAR/MODEL: GM AUTO PG, TH350, 400, 700R4, CHEVY OR UNI-CASE BOLT PATTERN,

STARTER USED: MODIFIED MOPAR 2 BOLT GEAR "MINI" STARTER

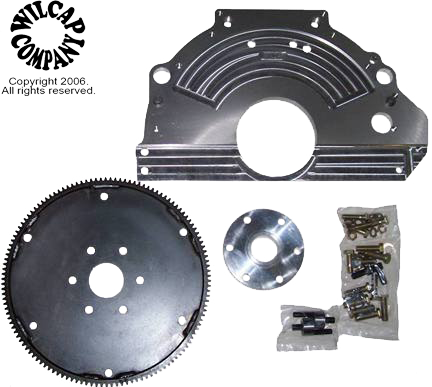

MATERIAL / MACHINING METHODS: WILCAP CNC MACHINED, BLANCHARD GROUND, ALUMINUM ADAPTERPLATE,

STEEL FLEXPLATE, ALUMINUM CRANKSHAFT SPACER, DOWEL PINS, GRADE 8 CRANKSHAFT ATACHMENT BOLTS, ALLOY ENGINE TO ADAPTER FASTENERS.

ADDITIONAL PARTS NEEDED: MODIFIED STARTER, TRANSMISSION,

NOTES;

1. Due to the starter location, some small modification of the transmission case is necessary.

2. We can supply the starter. Part number and application is supplied in the kit.

3. Complete instructions are included. .

4. Adapter is supplied with a neutral balance flywheel. All external balance applications must be

match balanced to the engine.

5. On request we can machine the adapter plate with" ears" that protrude from each side to allow

you to use the adapter plate as a mid-mount.

We do not supply information regarding engine or transmission installation in to specific frames,

bodies, etc. This is the responsibility of the customer and care should be taken to address the. issues of

motor and transmission mounts, driveline, body and frame clearance, gear fatios, etc. BEFORE the

purchase ofthe engine to transmission adapter. We can assist you with information and dimensions of

the adapter prior to the start of your project so feel free to contact us with any questions.
